Product Name :

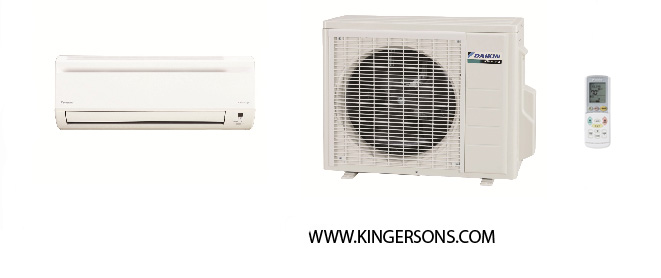

Daikin 12000 BTU Single Zone Heat Pump Wall Mounted FTXS12LVJU RXS12LVJU SEER 23
Indoor Unit Model No: FTXS12LVJU
Outdoor Unit Model No: RXS12LVJU
Rated Cooling Capacity (Btu/hr): 12000
Sensible Capacity (Btu/hr): 9250
Min/Max Cooling Capacity (Btu/hr / kW): 4,800-12,000
Cooling Input Power (kW): 0.94
Rated Heating Capacity (Btu/hr): 14400
Min/Max Heating Capacity (Btu/hr / kW): 4800 - 14400
Heating Input Power (kW): 0.97
Heating COP (Btu/hr / Btu/hr): 4.35
Indoor Unit Type: Wall MountedIndoor Unit Details:
Condensing Unit Type: High SEER Heat Pump
Rated Cooling Conditions Indoor: 80ºF DB/67ºF WB
Rated Cooling Conditions Outdoor: 95ºF DB/75ºF WB
Rated Heating Conditions Indoor: 70ºF DB/60ºF WB
Rated Heating Conditions Outdoor: 47ºF DB/43ºF WB
Rated Piping Length (ft): 25
Rated Height Separation (ft): 0
Power Supply (V/Hz/Ph): 208 - 230/60/1ph
Power Supply Connections: L1, L2, Ground
Dimensions (HxWxD): 11-5/8" x 31 1/2" x 8 7/16"
Net Weight (lbs): 22.0Airflow Rate (CFM Wet Coil): 403/309/205/155
Moisture Removal (pt/h): 0.5
Liquid (O.D.): Ø 1/4
Gas (O.D.): Ø 3/8
Condensate Drain (O.D.): Ø 5/8
Sound Pressure Level (dBA): 45
Sound Power Level (dBA): 61
Condensing Unit Details:
Power Supply (V/Hz/Ph): 208 - 230/60/1ph
Power Supply Connections: L1, L2, Ground
Min. Circuit Amps MCA (A): 8.75
Max. Overcurrent Amps MFA (A): 15
Rated Load Amps RLA (A): 3.9
Dimensions (HxWxD): 21 5/8 x 30 1/8 x11 1/4"
Net Weight (lbs): 75
Compressor Type: Inverter
Airflow Rate (CFM): 1183
Gas Pipe Connection (Inch): 3/8
Liquid Pipe Connection (Inch): 1/4
Sound Pressure Level (dBA): 49
Sound Power Level (dBA): 63
Refrigerant Type: R-410A
Holding Refrigerant Charge (lbs): 2.65
Additional Charge (oz/ft): 0.21
Pre-charge Piping Length (ft): 32.8
Maximum Pipe Length (ft): 65.6
Maximum Pipe Length Vertical (ft): 49.2
Operating Range - Cooling: 14-115°F
Operating Range - Cooling with Wind Baffle : 0-115°F
Operating Range - Heating: 5-64°FWarranty:
Operating Range - Heating with Wind Baffle : 0-77°F
Parts: 5 Years
Compressor: 7 Years
12000 BTU 1 Ton 23 SEER Ductless Mini Split Air Conditioner with Heat Pump. Offers a space saving design, quiet operation and an inverter "variable speed" compressor. Instead of noisy compressors and large ductwork, Daikin uses a small, easily hidden outdoor unit connected to a wall mounted indoor via a pair of copper piping to heat and cool your room or zone. These lines open into a small three-inch opening through a wall or ceiling. Its streamlined, wall-mounted indoor units and compact outdoor units blend in discreetly with any home design and run quietly, too. Whether you're enhancing a single room or adding on an entire wing, the system's space-saving, modular design is ideal for set-apart areas like a garage office or nursery.
•Quick and easy duct-free installation
•Outstanding heating performance down to 0° F with the optional wind baffle
•Precision temperature control for individual rooms
•Inverter "variable speed" compressor
•Fully optimized for R410A refrigerant, recognized as the future industry standard
•Offers world-renowned Daikin technician support and customer service
•Wide Angle Louvers
•Vertical Auto Swing (up and down)
•Indoor Unit Quiet Operation
•Program Dry Function
•Auto Fan Speed
•Healthy and Clean
•Mold Proof Air Filter
•Titanium Apatite Photocatalytic
•Air Purifying Function
•Wipe clean Flat Panel
•Remote Controller with backlit display
•LCD Wireless Remote Control
•Indoor Unit On/Off Timer
•24 Hour On/Off Timer
•Night Set Mode
•Auto Restart after Power Failure
•Self Diagnosis with Digital Display
•Anticorrosion Treatment of Outdoor Heat Exchanger Fin
