Brand : Goodman Heat Pump Units
hvac prices

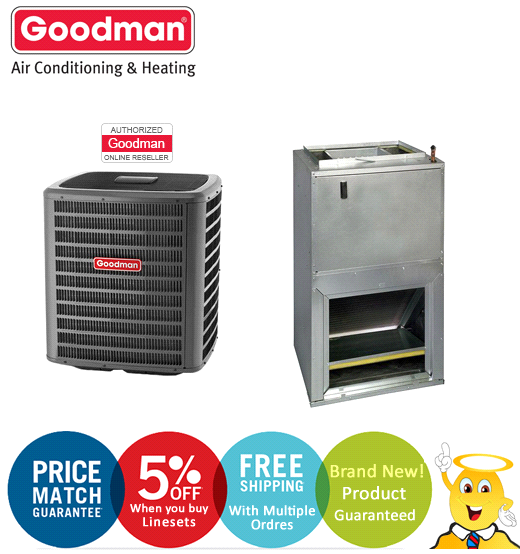

Product Name : 1.5 Ton Goodman SEER 16 Heat Pump GSZ160181 AWUF310516 W/Electric Central Split System

Item# :
GSZ160181 AWUF310516
Reg Price :
$5,637.60
Your Price :
$3,100.68
Choose QTY :

heat pump splits

Description

Provide your space with the yearlong comfort and get the most out of the Goodman GSZ160181 1.5 ton heat pump from the GSZ16 line, in pair with the appropriate indoor unit, this outdoor model features both cooling and heating performance. Due to the efficiency rating of 16 SEER the heat pump helps to keep your area comfortable with low energy and financial costs.

The model ideally fits residential applications with a nominal cooling and heating capacity of 18,000 BTU. The eco-friendly R-410A refrigerant and a highly efficient compressor deliver exceptional operation. A quiet and reliable defrosting of the unit during freezing winter periods is achieved due to a SmartShift™ technology.

The faultless heat pump operation is secured by a heavy gauge steel cabinet. A sound-dampening feature with a louvered sound ensures a quiet operation of your conditioning system throughout the unit's lifespan. Upgrade your split conditioning system with the high-efficient Goodman GSZ160181 and get the best cooling and heating comfort from a single system.

Features

  • High-efficiency scroll compressor
  • SmartShift® technology to ensure quiet reliable defrost
  • Factory-installed bi-flow liquid-line filter drier
  • Factory-installed suction-line accumulator
  • Factory-installed compressor crankcase heater
  • Factory-installed high-capacity muffler
  • High- and low-pressure switches
  • Service valves with sweat connections and easy access to gauge ports
  • Copper tube/enhanced aluminum fin coil
  • Fully charged for 15' of tubing length
  • Contactor with lug connection
  • Ground lug connection
  • AHRI Certified; ETL Listed
  • ENERGY STAR® certified
  • Goodman® brand sound control top design
  • Steel louver coil guard
  • Heavy-gauge galvanized-steel cabinet
  • Attractive architectural gray powder-paint finish with 500-hour salt-spray approval
  • Top and side maintenance access
  • Service ports and controls are accessible while unit is operating
  • When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Description

The Goodman AWUF310516 is a wall-mounted, multi-speed air handler with a check flowrater. It has a top-of-the-line, all-aluminum evaporator coil. It comes with a wall-hanging bracket, for a faster installation process.

This Goodman air conditioner comes from the AWUF line of wall-mounted air handlers. It features a blower cooling capacity of 1.5-2.5 tons with a nominal cooling rating of 30,000 BTU/h. It has rust-resistant nickel chromium heating elements that feature an electric heat capability of 5 kW. For effective cooling, this air handler uses a direct drive, multi-speed PSC motor that allows for air volume variation.

This wall-mounted air handler comes with many impressive features that make it a great choice for your home. This model features a large chassis with a front return only. A built-in filter rack with included filter makes for healthier air quality. Plus, a thermoplastic drain pan with bottom primary and secondary drain connections creates better control over condensate and moisture created by this unit.

Features

  • Suitable for use with refrigerants R-410A and R-22
  • Equipped with a check flowrater for cooling-only and heat pump operation
  • Direct-drive, multi-speed motor allows air volume variation for heating and cooling
  • Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
  • Factory-installed pull-type disconnect
  • Aluminum tube coils on all models
  • AHRI Certified
  • ETL Listed
  • Thermoplastic drain pan with bottom primary and secondary drain connections
  • Built-in filter rack (filter included)
  • Large chassis (2½- and 3-ton units)

Description

A specially formulated super-hydrophobic (water repelling) product in a convenient aerosol package for field service. The non-conductive formula has numerous applications in the management of water on non-food, non-potable water surfaces for the HVAC/R trade; surfaces that are not exposed to ongoing abrasion (hand and foot traffic).

  • Slows ice formation on refrigeration coils/cold plates

  • Provides added corrosion resistance to coils

  • Improves corrosion resistance to system components. Examples include circuit boards, filter-driers, flow control valves, equipment covering, etc.

  • Provides added corrosion protection of solder connections on low voltage circuit boards

  • Self-cleaning properties reduce rate of grime on outdoor coils

  • Reduces rate of bacterial growth on non-food, non-potable water surfaces

  • Improves water dispersion in condensate pans

  • Many other applications!



Specification


Cooling Capacity 18000 BTU
 Cooling Capacity 1.5 Tons
 Heating Capacity 18000 BTU
 SEER 16 SEER
 Refrigerant R-410A
 Maximum Overcurrent Protection (Breaker) 20 Amps
 Compressor Type Scroll
 Low Pressure Safety Switch Yes
 Liquid Line Connection Size 3/8 Inches
 Suction Line Connection Size 3/4 Inches
 TXV Required Yes
 Noise Level 72 Decibels
 Pad Size 30x30 Inches
 Shipping Weight 189 lbs
 Width 29 Inches
 Depth 29 Inches
 Height 36 3/8 Inches
 Voltage 208 / 230 Volts
 Frequency 60 Hz
 Voltage Phase 1
 Compressor Warranty 10 Years
 Parts Warranty 10 Years
Specification

  • Blower Motor: Multi Speed - PSC
  • Brand: Goodman
  • CFM: 1,005
  • Energy Source: Electric
  • Liquid Line: 3/8"
  • Max Breaker Size: 35 amps
  • Min. Breaker Size: 30.1 amps
  • Model: AWUF310516
  • Nominal Capacity: 1.5 Ton - 2.5 Ton
  • Product Depth: 21"
  • Product Height: 36"
  • Product Weight: 107 lbs.
  • Product Width: 24"
  • Refrigerant: R410A or R22
  • Suction Line: 3/4"

Directions

This product must be used in accordance to the following directions by HVACR professionals only.

  1. Disconnect all power to the equipment before use. Do not spray near sparks, heat or open flame. Discontinue the use of power tools during use. Do not smoke while applying product.
  2. Shake well before use. Use outdoors or in a well-ventilated area. Keep area ventilated until fumes are gone. Avoid breathing of fumes during application.
  3. Ensure surface is clean and mostly to fully dry before applying. After a coil cleaning, the surface needs to be blown dry with an inert gas to remove excess moisture from the surface before applying Nu-Shield.
  4. From a distance of 6-12 inches, spray a light coat on the surface, but no more beyond it being visibly wet. In other words, ‘Wet It and Forget It’. Contents in the canister will cover approximately 100 square feet. Depending on ambient conditions, allow a minimum of 20 minutes for Nu-Shield to dry on surface. Ensure surface appears visually dry and fumes are gone from the area before turning on power to equipment.

Note: Product needs to be applied after each coil cleaning. For best results, especially in corrosive environments, the product should be reapplied annually.






10 years limited warranty on parts through the manufacturerThe Goodman AWUF310516 qualifies for a 10 Year Parts Limited Warranty.
