Brand : Goodman Gas Furnaces
hvac prices

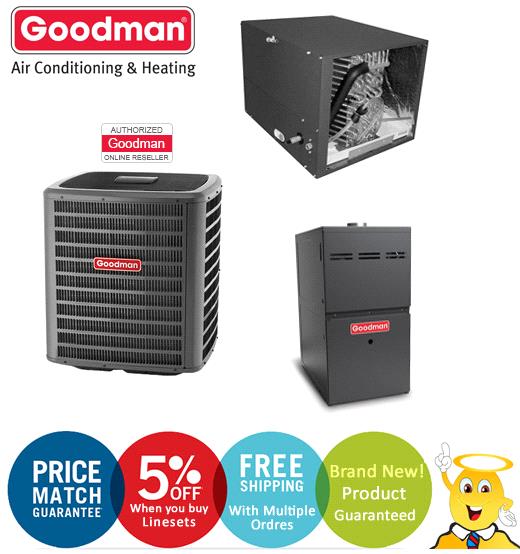

Product Name : 1.5 Ton Goodman SEER 16 Gas Furnace GSX160181 CHPF3636B6 GME80603BN AFUE 80 Per

Item# :
GSX160181 CHPF3636B6 GME80603BN
Reg Price :
$6,060.96
Your Price :
$3,333.53
Choose QTY :

heat pump splits

The Goodman GSX16 16 SEER Air Conditioner is the latest high efficiency 16 SEER Air Conditioner from Goodman and provides a mix of performance, efficiency and value unmatched in the industry. The GSX16 uses the environmentally friendly refrigerant R-410A and features the unique Goodman sound control top design for quiet operation. The coil is made of rifled refrigeration-grade copper tubing and corrugated aluminum fins in a design that maximizes surface area. In addition, the unit has an attractive louvered metal guard that protects the coil from damage plus a powder-paint finish that provides premium durability and improved UV protection.

Standard Features:

  • R-410A environmentally friendly refrigerant
  • Factory-installed liquid line filter dryer
  • 850-RPM condenser fan motor
  • High-efficiency scroll compressor
  • Copper tube/aluminum fin coil
  • Service valves with sweat connections and gauge ports
  • Contactor with lug connection
  • Ground lug connection
  • ARI Certified; ETL Listed
Description

CHPF Dual Refrigerant Series Cased, Painted Upflow/Downflow, Horizontal/Vertical A Coils


Goodman coils are designed for use with Goodman Brand Gas Furnaces, Split System Air Conditioners and Heat Pumps, as well as modular, two-piece blowers. Each cased coil has a quality, galvanized-steel cabinet.

Standard Features:

  • Suitable for use with R-410A and R-22 refrigerants
  • Rust-proof, thermoplastic drain pans feature a low water-retention design
  • Check flowrater expansion device for heat pump or cooling-only applications
  • Rifled copper tubing and louvered aluminum fin coils on CAPF, CAUF, and CSCF coils
  • Rifled aluminum tubing and louvered aluminum fin coils on the CHPF coil
Description

The Goodman GME80603BN is a multi-speed gas furnace. It uses a dual-diameter tubular heat exchanger. It is housed in a fully-insulated heavy-gauge steel cabinet with a durable baked-enamel finish. A multi-speed energy-efficient circulator (ECM) motor operates gently to adjust to temperature demands.

This Goodman gas furnace is a two-stage, multi-speed, multi-position heater. It uses a durable 115V Silicon Nitride igniter to maintain a comfortable temperature in the home. This Goodman gas furnace has a heating capacity of 60,000 BTU.

This heater comes from the GME8 line of Goodman gas furnaces. This collection of Goodman gas furnaces has up to 80% AFUE (annual fuel utilization efficiency) rating. Many standard furnaces feature 60% AFUE, which means that this system can contribute to significant energy savings.

This multi-position Goodman gas heater offers many installation options. It can be installed in upflow or horizontal left or right positions. This model features a low constant fan to improve the efficiency of air circulation in the home and a self-diagnosing control board that saves the last five diagnostic codes in memory.


Features
  • Operates as a natural gas furnace out of the box, and can be easily converted to a propane furnace with optional propane conversion kit.
  • X13 blower motor with brushless DC design and a permanent-magnet rotor which allows much more efficient operation furnace in both heating and cooling months
  • Patented TuffTube™ dual-diameter tubular furnace heat exchanger
  • Heater's Two-stage gas valve with revolutionary new Dual$aver control technology allows installer to turn on two-stage operation with the flip of a dipswitch
  • Goodman Silicon Nitride igniter with patented adaptive learning routine for maximum igniter life
  • Integrated furnace electronic furnace control board with self-diagnostics, low-voltage terminal block, and separate terminals for electronic air cleaner and 24-volt humidifiers
  • Goodman has furnace control board stores the last five diagnostic codes in memory; simple push-button activation outputs the fault history to a flashing red LED
  • Low constant fan mode allows the homeowner to activate the lowest available heating speed to circulate air quietly and efficiently throughout the home during the off cycle
  • Furnaces' self-adjusting feature automatically adjusts furnace to high or low stage based on outside temperature without outdoor temperature sensor
  • Quiet single-speed, induced-draft blower
  • Fully insulated, heavy-gauge steel furnace cabinet with durable baked-enamel finish
  • Foil-faced insulation lines the furnaces' heat exchanger compartment
  • Designed for multi-position installation: upflow, horizontal left or right
  • Removable bottom for side- or bottom-return applications
  • Furnaces' convenient left or right connection versatility for gas and electric service
  • Coil and furnace fit flush for most installations


Description

A specially formulated super-hydrophobic (water repelling) product in a convenient aerosol package for field service. The non-conductive formula has numerous applications in the management of water on non-food, non-potable water surfaces for the HVAC/R trade; surfaces that are not exposed to ongoing abrasion (hand and foot traffic).

  • Slows ice formation on refrigeration coils/cold plates

  • Provides added corrosion resistance to coils

  • Improves corrosion resistance to system components. Examples include circuit boards, filter-driers, flow control valves, equipment covering, etc.

  • Provides added corrosion protection of solder connections on low voltage circuit boards

  • Self-cleaning properties reduce rate of grime on outdoor coils

  • Reduces rate of bacterial growth on non-food, non-potable water surfaces

  • Improves water dispersion in condensate pans

  • Many other applications!


Cooling Capacity 18000 BTU
 Cooling Capacity 1.5 Tons
 SEER 16 SEER
 Refrigerant R-410A
 Maximum Overcurrent Protection (Breaker) 20 Amps
 Compressor Type Scroll UltraTech™
 Liquid Line Connection Size 3/8 Inches
 Suction Line Connection Size 3/4 Inches
 TXV Required Yes
 Noise Level 73.5 Decibels
 Pad Size 30x30 Inches
 Shipping Weight 193 lbs
 Width 29 Inches
 Depth 29 Inches
 Height 32 1/4 Inches
 Voltage 208 / 230 Volts
 Frequency 60 Hz
 Voltage Phase 1
 Compressor Warranty 10 Years With Online Registration
 Parts Warranty 10 Years
Specification

Configuration Horizontal
 Cooling Capacity 3 Tons
 Refrigerant R-22 / R-410A
 Number of Rows 4
 Liquid Line Connection Size 3/8 Inches
 Suction Line Connection Size 3/4 Inches
 Orifice Size 0.074 inches
 Coil Width 21 1/8 inches
 Coil Height 17 1/2 inches
 Coil Depth 26 inches
 Plenum Opening Width 19 inches
 Plenum Opening Height 16.5 inches
 Shipping Weight 50 lbs


Specification

Configuration Horizontal / Upflow
 Blower Cooling Capacity 1.5 / 2 / 2.5 / 3 / 3.5 Tons
 Maximum Input BTU 60000 BTU
 Maximum Heating Output BTU 48000 BTU
 Minimum Input BTU 45000 BTU
 Minimum Output BTU 36000 BTU
 Maximum CFM 1378 @ 0.5
 Efficiency (% AFUE) 80 %
 Blower Type High Efficiency Multi-Speed
 Burner Stages Two
 Maximum Overcurrent Protection (Breaker) 15 Amps
 Fuel Type LP Capable (Kit Required) / Natural Gas
 ENERGY STAR® Qualified No
 Vent Connection 4 Inches
 Supply Air Opening Size 16 x 19.625 Inches
 Flue Pipe Diameter 4
 Product Weight 130 lbs
 Shipping Weight 130 lbs
 Meets CSA Standards Yes
 Meets Canadian OEE Standards No
 California Approved No
 Width 17 1/2 Inches
 Depth 28 Inches
 Height 33 3/8 Inches
 Voltage 120 Volts
 Frequency 60 Hz
 Voltage Phase 1
 Heat Exchanger Warranty Lifetime
 Unit Replacement Warranty 10 Years
 Parts Warranty 10 Years


Directions

This product must be used in accordance to the following directions by HVACR professionals only.

  1. Disconnect all power to the equipment before use. Do not spray near sparks, heat or open flame. Discontinue the use of power tools during use. Do not smoke while applying product.
  2. Shake well before use. Use outdoors or in a well-ventilated area. Keep area ventilated until fumes are gone. Avoid breathing of fumes during application.
  3. Ensure surface is clean and mostly to fully dry before applying. After a coil cleaning, the surface needs to be blown dry with an inert gas to remove excess moisture from the surface before applying Nu-Shield.
  4. From a distance of 6-12 inches, spray a light coat on the surface, but no more beyond it being visibly wet. In other words, ‘Wet It and Forget It’. Contents in the canister will cover approximately 100 square feet. Depending on ambient conditions, allow a minimum of 20 minutes for Nu-Shield to dry on surface. Ensure surface appears visually dry and fumes are gone from the area before turning on power to equipment.

Note: Product needs to be applied after each coil cleaning. For best results, especially in corrosive environments, the product should be reapplied annually.







10 Year All Parts Warranty

The Goodman CAPF3636B6 qualifies for a 10-Year Parts Limited Warranty.


The Goodman GME80603BN qualifies for a Lifetime Heat Exchanger Limited Warranty, a 10 Year Unit Replacement Limited Warranty and a 10 Year Parts Limited Warranty.
