Brand : BOSCH
hvac prices

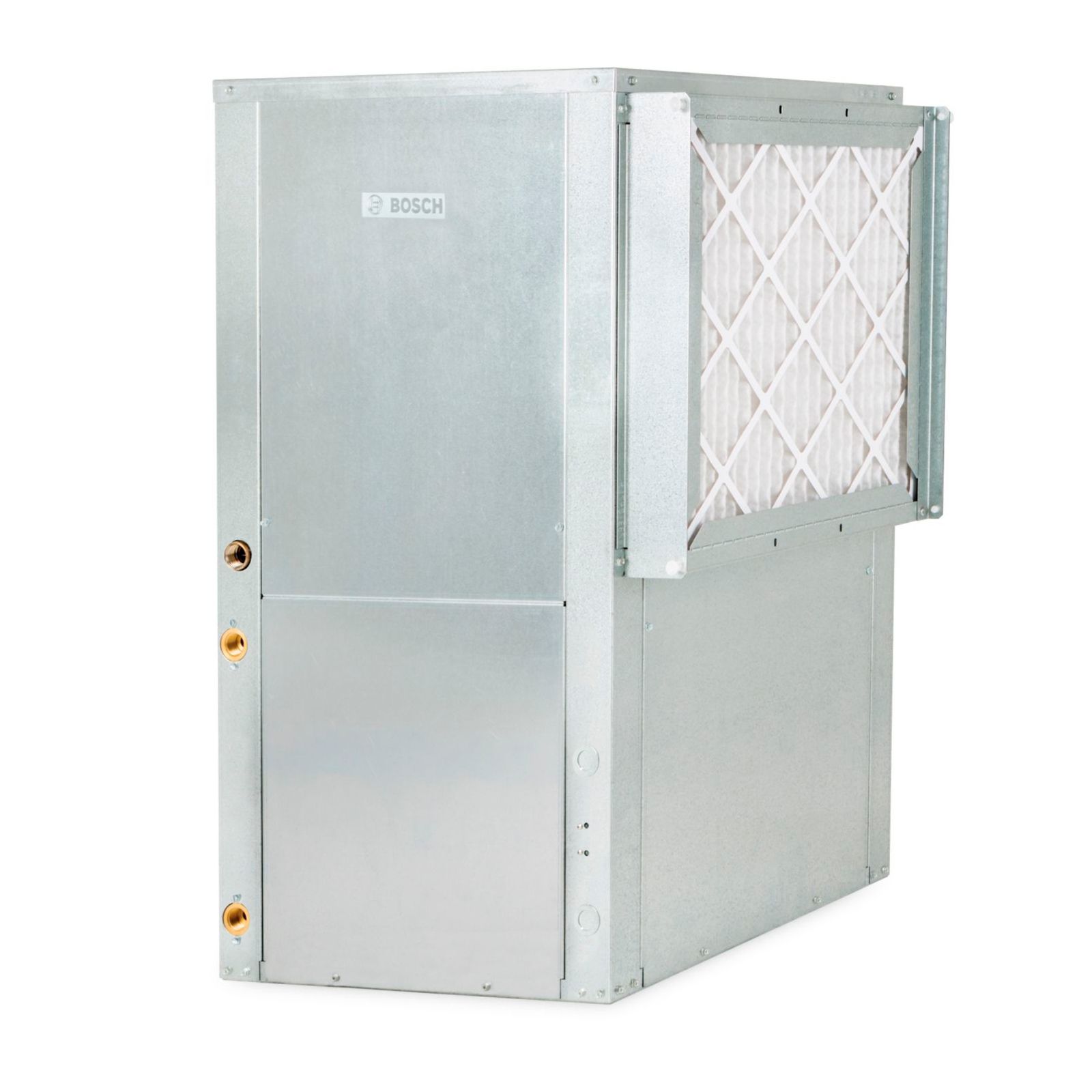

Product Name : Bosch 7-735-071-569 - SV024-1VTC-FRTPDD Water Source Heat Pump, 24,300 BTU, 14.2 EER, Vertical, Right Return, 208-230/1

Item# :
SV024-1VTC-FRTPDD
Reg Price :
$3,835.87
Your Price :
$2,598.66
Choose QTY :
heat pump splits
Model SV 2 Ton VT Cu 208-230/1/60Hz R Return Top PSC DuoGuard Standard Cabinet TXV Application Std Filter

The SV model is a cost-effective single stage water source heat pump designed for residential and light commercial retrofit and new construction applications.

Standard Features:

Available in Horizontal and Vertical Cabinets
  • Constructed using galvanized steel
  • Standard hanging bracket kits on HZ units for suspending the unit from field supplied hanger rods
Single Stage Compact
  • Up to 16.9 EER (GLHP)
  • PSC blower motors for all sizes except (041, 060, 070)
  • ECM constant torque blower motors standard for sizes 041, 060, 070
Unit Configuration
  • Left hand or right hand return air
  • Top or end supply air
  • Copper or Cupro-Nickel Coaxial Coil
Standard 1" Throwaway Filter with 2 side Filter Rack

1/2" Dual Density Fiber Insulation
  • Non-combustible, non-hydroscopic and does not support fungal growth
  • Meets NFPA 90A and 90B for fire protection
  • Meets the GREENGUARD Indoor Air Quality Standard
  • All panels are insulated using 1.5 lb./cu.ft. density micromat fiberglass insulation for both thermal insulation and noise reduction
Compressors
  • Floating compressor base pan for quiet operation
  • Rotary type compressors on sizes 007 through 018
  • Scroll type compressors on sizes 024 through 070
TXV (Thermal Expansion Valve)
  • Improves refrigerant management and efficiencies
Reliability - Durability - Serviceability
  • Tin plated coil
  • UPM circuit board with communicating features
  • Completely serviceable from front of unit as well as insulated bulkheads allow the unit to be serviced during operation
DuoGuard(™) Evaporator Coil
  • Tin Electro-Plated Copper Tubing Hair Pins with hightech polymer coated Aluminum fins will protect the evaporator coil from most forms of corrosive elements in the airstream
Electronic Circuit Board UPM
  • The electronic circuit board provides protection with: Random Start of Unit, Anti-Short Cycling (5 minute delay), Alarm communicating output, Low pressure switch bypass at cold water start up
  • It also monitors and communicates standard safety features/alerts/operation/protection: Low Pressure Switch, High Pressure Switch, Evaporator Freeze Protection, Water Coil Freeze Switch, Condensate Overfl ow Switch
  • This circuit board can communicate with a Bosch thermostat that alerts the customer of adverse conditions
75 VA Transformer

Warranty
  • 1 year all parts limited warranty
  • 5 year compressor limited warranty
  • For full warranty details: https://www.bosch-climate.us/support-center/productwarranty-library/residential-heat-pumps-geothermalwarranty-documents.html
Field Configurable Horizontal Discharge Air Conversion
  • The horizontal conversion allows end blow to straight through conversion of discharge air, as factory installed straight through configuration for HZ units is no longer available.
Water Connections
  • All water connections are heavy duty bronze FPT fittings securely fastened to the unit corner post

Name Bosch 7-735-071-569 - SV024-1VTC-FRTPDD Water Source Heat Pump, 24,300 BTU, 14.2 EER, Vertical, Right Return, 208-230/1
Gemaire Item Number SV024-1VTC-FRTPDD
Manufacturer Product Number 7-735-071-569
SKU - PIM Number 1449162400344998
ERP Number 387020
Unit of Measure EA
Weight 177.0 Pounds (Lb)
Length 21.5 Inches (In)
Width 21.5 Inches (In)
Height 39.3 Inches (In)
Country of Origin USA
Brand Bosch
Equipment Type Hydronic
Tonnage 2
Stage Single
EER 14.2-16.9
Refrigerant R-410a
CFM 610-1000
Cooling Capacity 24300-25400
Heating Capacity 18100-27400
Air Flow Vertical
Voltage 208 VAC
Phase Single
Cycle/Hertz 60 Hz
Circuit Breaker - Max Amps 15
Minimum Circuit Amps 11.1
Maximum Fuse Size 15
Blower Motor HP 1/4 HP
Rated Load Amps 7.4
Locked Rotor Amps 43
Drain Connection Size 3/4"
Color Silver
COP 3.55-5
Warranty Offered Yes
Energy Star Rated No
UL Listed Yes
Product Family SV024
